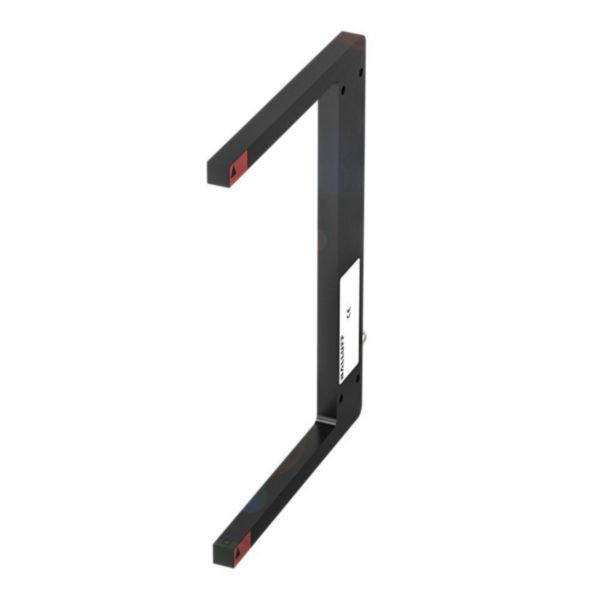

Fork sensor BGL000J

Our fork sensors with transmitter and receiver in one housing are easily adjusted. That reduces your expense, saves valuable time during start-up and supports reliable processes. When it comes to precision, Balluff's fork sensors are unrivaled. Our comprehensive portfolio provides reliable solutions. Also for special applications like transparency recognition, water detection and web edge control. Series=A, Dimension=10 x 200 x 153 mm, Fork opening=180 mm, Interface=PNP normally open/normally closed (NO/NC), Principle of operation=Fork sensor, Principle of optical operation=Through-beam sensor, Beam characteristic=Divergent, Light type=LED, red light, Light spot size=Ø 2.5 mm Light exit, Connection=Connector, M8x1-Male, 3-pin, Housing material=Zinc, Die casting, Material sensing surface=Glass, Operating voltage Ub=10...30 VDC, Approval/Conformity=CE<multisep/>cULus<multisep/>EAC<multisep/>WEEE, Trademark=Global
