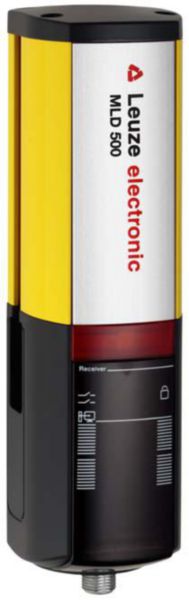

MLD510-R1L

Type: 4; IEC/EN 61496; SIL: 3; IEC 61508; Performance Level (PL): e; EN ISO 13849-1:2008; Category: 4; EN ISO 13849; Response time: 25 ms; Supply voltage: 24 V; DC; -20-20 %; Connection: Connector; M12; Metal; 5 -pin; Design: Cubic; Dimension: 52x193x64.7mm; Special design: Reflective element for laser alignment aid
