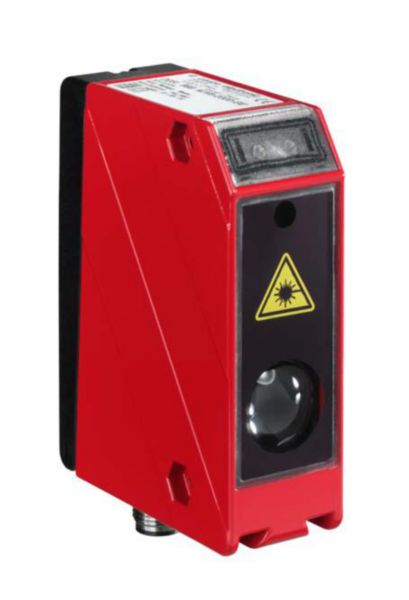

ODSL 96B M/D36-2000-S12

Scanning system: Against object; Light source: Laser; Red; Light spot size: 2x6mm; Measurement range: 150-2.000mm; Geometric resolution: 1.0-3.0mm; Accuracy: 1.5 %; Supply voltage: 10-30VDC; Digital switching outputs: 1 Piece(s); Interface: RS 485; Connection: Connector; M12; 5 -pin; Dimensions: 30x90x70mm; Operational controls: PC software; Membrane keyboard
