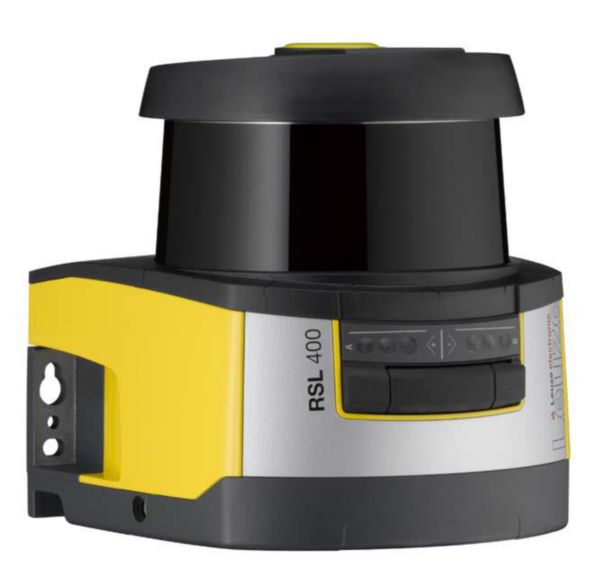

RSL410-M/CU408-M12

Type: 3; IEC/EN 61496; SIL: 2; IEC 61508; Performance Level (PL): d; EN ISO 13849-1; Scanning angle: 270 °; Number of field pairs; reversible: 1; Number of protective functions: 1 Piece(s); Operating range: 0-4.5 m; Range; warning field: 0-20 m; Supply voltage: 24 V; DC; -30-20 %; Safety-related switching outputs (OSSDs): 2 Piece(s); Transistor; PNP; Connection 1: Connector; M12; 8 -pin; Connection 2: Connector; M12; 4 -pin; Dimension: 140.2x148.6x140.3mm
