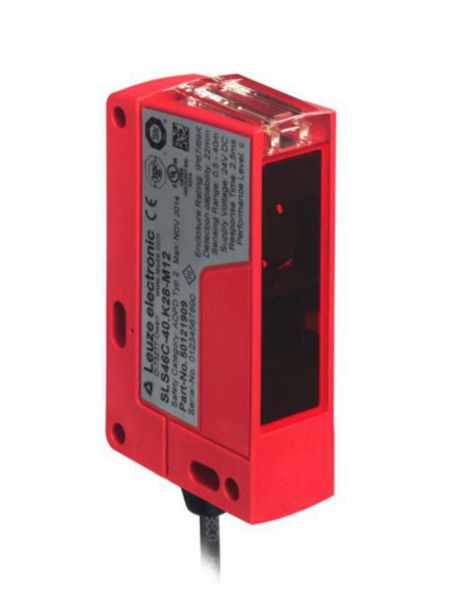

SLS46C-70.K28

Type: 2; IEC/EN 61496; in combination with a suitable test monitoring unit; e.g. MSI-TR1B; SIL: 1; IEC 61508; in combination with a suitable test monitoring unit; e.g. MSI-TR1B; Performance Level (PL): c; EN ISO 13849-1:2008; Category: 2; EN ISO 13849; Operating range: 5-70 m; Operating range limit: 5-80 m; Light source: LED; Red; Supply voltage: 24 V; DC; -20-20 %; Response time: 2.5 ms; Connection: Cable; 2.000mm; PUR; Design: Cubic; Dimension: 20.5x76.3x44mm
