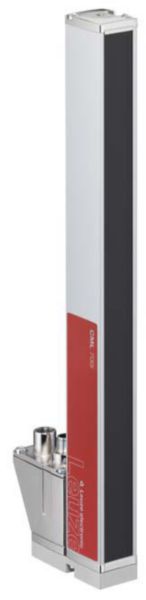

CML720i-R05-640.R/CN-M12

Operating range: 0.1-3.5 m; Measurement field length: 640mm; Beam spacing: 5mm; Cycle time: 4.24 ms; Response time per beam: 30 µs; Supply voltage: 18-30VDC; Interface: CANopen; Connection: Connector; M12; Rear side; 8 -pin; Dimensions: 29x35.4x663mm; Special design: Crossed-beam scanning; Parallel-beam scanning; Diagonal-beam scanning
