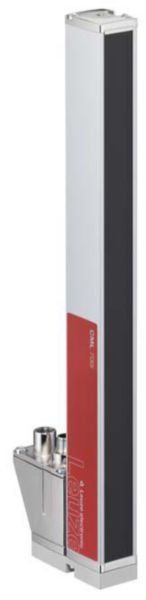

CML720i-R10-1280.R/CN-M12

Operating range: 0.3-7 m; Measurement field length: 1.280mm; Beam spacing: 10mm; Cycle time: 4.24 ms; Response time per beam: 30 µs; Supply voltage: 18-30VDC; Interface: CANopen; Connection: Connector; M12; Rear side; 8 -pin; Dimensions: 29x35.4x1.303mm; Special design: Crossed-beam scanning; Parallel-beam scanning; Diagonal-beam scanning
