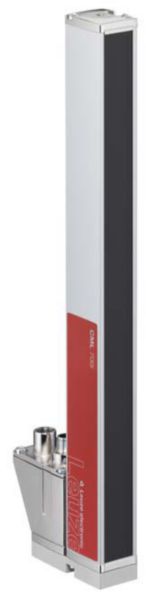

CML720i-R20-2710.R/CN-M12

Operating range: 0.3-7 m; Measurement field length: 2.710mm; Beam spacing: 20mm; Cycle time: 4.48 ms; Response time per beam: 30 µs; Supply voltage: 18-30VDC; Interface: CANopen; Connection: Connector; M12; Rear side; 8 -pin; Dimensions: 29x35.4x2.743mm; Special design: Crossed-beam scanning; Parallel-beam scanning; Diagonal-beam scanning
