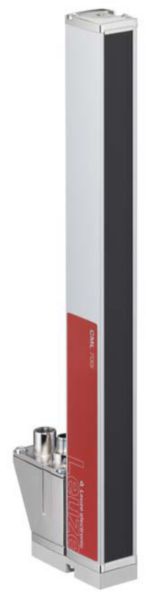

CML730i-R05-1200.R/L-M12

Special design: Crossed-beam scanning; Diagonal-beam scanning; Parallel-beam scanning; Operating range: 0.1-4.5 m; Measurement field length: 1.200mm; Beam spacing: 5mm; Supply voltage: 18-30VDC; Cycle time: 2.55 ms; Response time per beam: 10 µs; Interface: IO-Link; Connection: Connector; M12; Rear side; 8 -pin; Dimensions: 29x35.4x1.223mm
