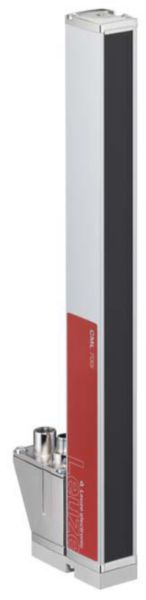

CML730i-R10-1760.R/L-M12

Special design: Crossed-beam scanning; Diagonal-beam scanning; Parallel-beam scanning; Operating range: 0.3-9.5 m; Measurement field length: 1.760mm; Beam spacing: 10mm; Supply voltage: 18-30VDC; Cycle time: 1.91 ms; Response time per beam: 10 µs; Interface: IO-Link; Connection: Connector; M12; Rear side; 8 -pin; Dimensions: 29x35.4x1.783mm
