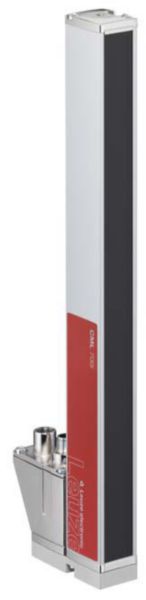

CML730i-R10-2400.R/CV-M12

Special design: Crossed-beam scanning; Diagonal-beam scanning; Parallel-beam scanning; Operating range: 0.3-9.5 m; Measurement field length: 2.400mm; Beam spacing: 10mm; Supply voltage: 18-30VDC; Analog outputs: 2 Piece(s); Voltage; Current; Cycle time: 2.55 ms; Response time per beam: 10 µs; Connection: Connector; M12; Rear side; 8 -pin; Dimensions: 29x35.4x2.423mm
