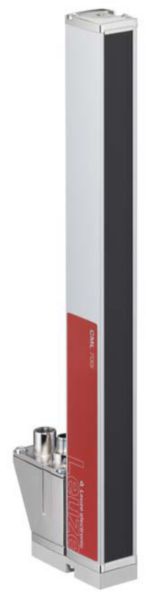

CML730i-R40-2210.R/CV-M12

Special design: Crossed-beam scanning; Diagonal-beam scanning; Parallel-beam scanning; Operating range: 0.3-9.5 m; Measurement field length: 2.210mm; Beam spacing: 40mm; Supply voltage: 18-30VDC; Analog outputs: 2 Piece(s); Voltage; Current; Cycle time: 1 ms; Response time per beam: 10 µs; Connection: Connector; M12; Rear side; 8 -pin; Dimensions: 29x35.4x2.263mm
