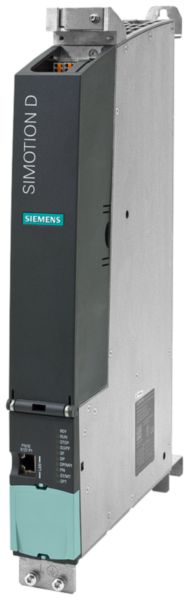

SIMOTION Drive-based Control Unit D425-2 DP/PN, programmable motion controller, BASIC performance, interfaces: 12 DI, 16 DI/DO, 4 DRIVE-CLiQ, 2 PRO...

SIMOTION Drive-based Control Unit D425-2 DP/PN; programmable motion controller; BASIC performance; interfaces: 12 DI, 16 DI/DO, 4 DRIVE-CLiQ, 2 PROFIBUS, 3 PROFINET ports, 2 ethernet, 2 USB, 1 option slot; incl. dual fan / battery module and battery Compact, flexibly scalable, cost-efficient and responsive: In SIMOTION D of the SIMOTION family, the PLC, technology and Motion Control functionality is integrated directly in the closed-loop control module of the SINAMICS S120 drive system. SIMOTION D is ideally suited to complex applications implemented in confined spaces. By combining the controller and the drive in one system, SIMOTION D requires little space in the control cabinet. The system is thus optimally suited to distributed or modular automation solutions - especially when it comes to complex machines that place high time-critical demands on axis couplings. SIMOTION D is the ideal solution for systems in which large axis quantity structures and minimum cycle times are required for high machine cycles rates and optimum product quality through deterministic, reproducible machine behavior. Versatile and equipped to meet even the most complex requirements: Our SIMOTION D4x5-2 multi-axis system in four performance variants for up to 128 axes (booksize format) shows its strengths especially when high-performance applications are required under confined spatial conditions.
