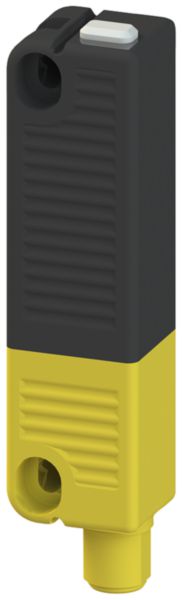

Contactless safety switch RFID rectangular 25 mm x 91 mm, family-coded

contact-free safety switch RFID rectangular 106 mm x 25 mm family-encoded, with M12 plug 8-pole and magnet latching 18 N, delivery status: ready for operation, actuator with magnet latching 18 N, to be ordered separately: 3SE6310-1BC01 RFID safety switch SIRIUS 3SE63 for space-saving and manipulation-proof monitoring of a guard fence, cover or door with a high (IP69K) degree of protection. Due to their high degree of protection IP69K, the contactless devices are suitable for use in extreme environmental conditions. They offer extensive diagnostic options via LEDs, as well as better installation tolerance of the protective door compared to mechanical switches. The switches can be used for the highest safety requirements according to PL e or SIL 3. All common safety evaluation units, e.g. 3SK, can be connected. The RFID safety switches are family-coded (ready for operation and replaceable) or individually coded (multiple or single teach-in capability). Versions with magnetic catch as well as matching actuators (standard or with magnetic catch) are available. Cover caps, spacers and connection cables are available as accessories in various lengths. Safety is a SIRIUS business.
