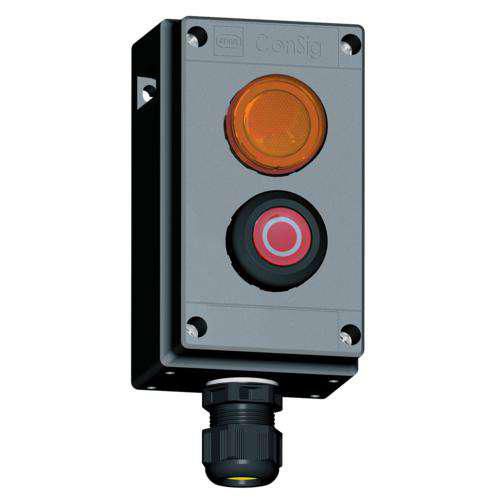

Control device system ConSig 8040 series

With the R. STAHL Series 8040 control device system, you can get a clear overview of the control devices. The 3 combinable design sizes and the modular structure offer flexibility. You can choose from one standard version and customised variants. Control device system, ConSig 8040 series, explosion-protected, Type: 8040/1280X-54C06SA70-01L08SA05, AC rated operational voltage: 690 V, Rated operational current: 10 A, Enclosure material: Polyester resin, Application range (zones): 1 2 21 22, Gas explosion protection: II 2 G Ex db eb IIC T6 Gb, Dust explosion protection: II 2 D Ex tb IIIC T80 °C Db, min. ambient temperature: -60 °C, max. ambient temperature: +40 °C, Degree of protection (IP): IP66, Top installation position: Indicator lamp bezel, All colours, Top built-in element: LED indicator lamp, Installation position: bottom: Pushbutton, Red - "0", Bottom built-in element: Contact element, Bottom switching arrangement: NC/NO, Bottom cable entry: 1 x M25 Ø 7 to 17 mm, Flange and plates: Without flange, without plates, For further information, see: r-stahl.com WebCode 8040B
